Thames River Road

About this roofing project

We replaced a 5,000 sq. ft. roof on this refurbished ranch home with 2.5 car garage and elevated porch on Thames River Road. The roof had two badly deteriorated layers of roofing material. All shingles, felt paper, flashing, pipe boots, roof vents, and nails were removed. Several damaged areas of decking were replaced with plywood. We completed the installation of the new roof system in two days, utilizing a large project crew.

Setup

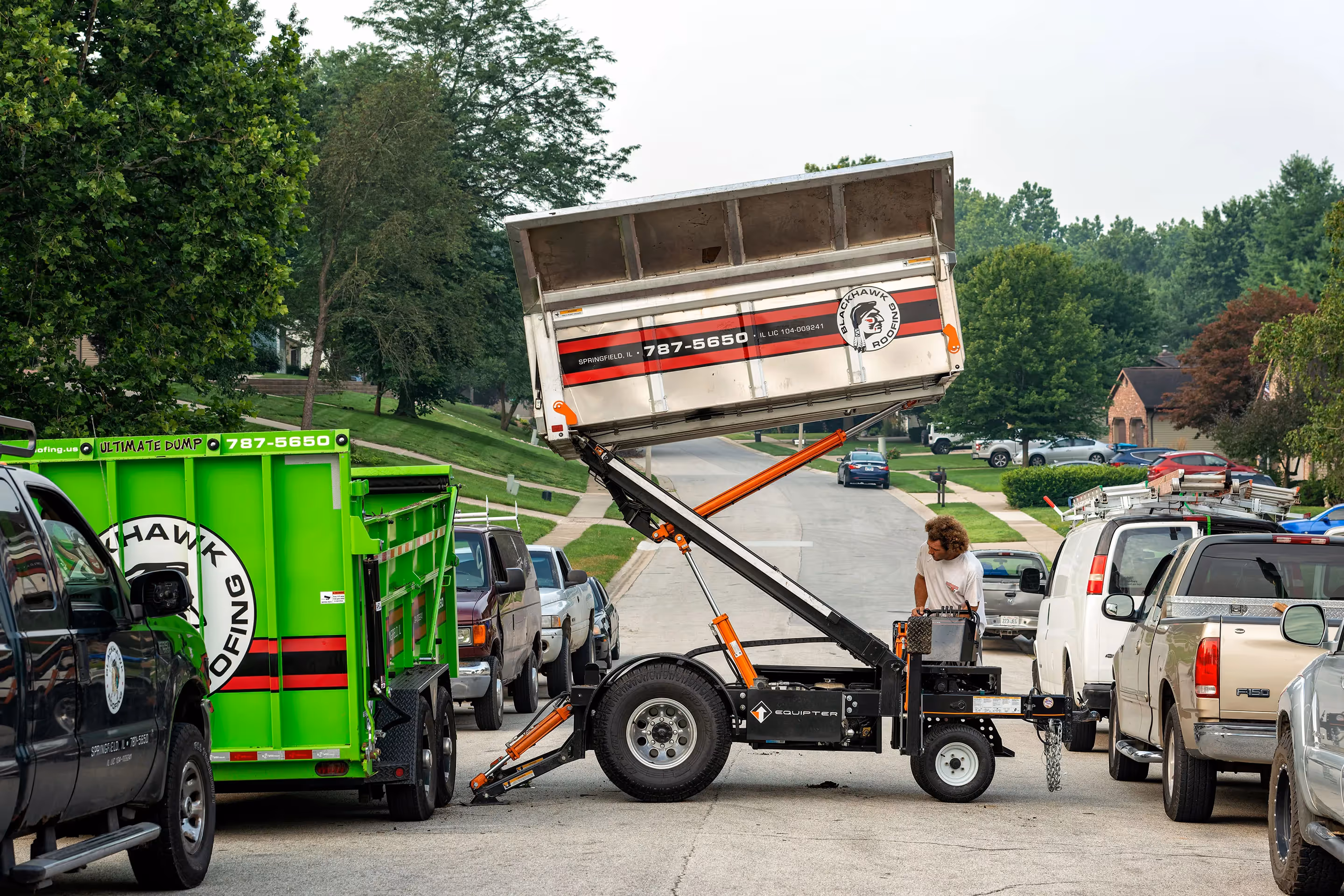

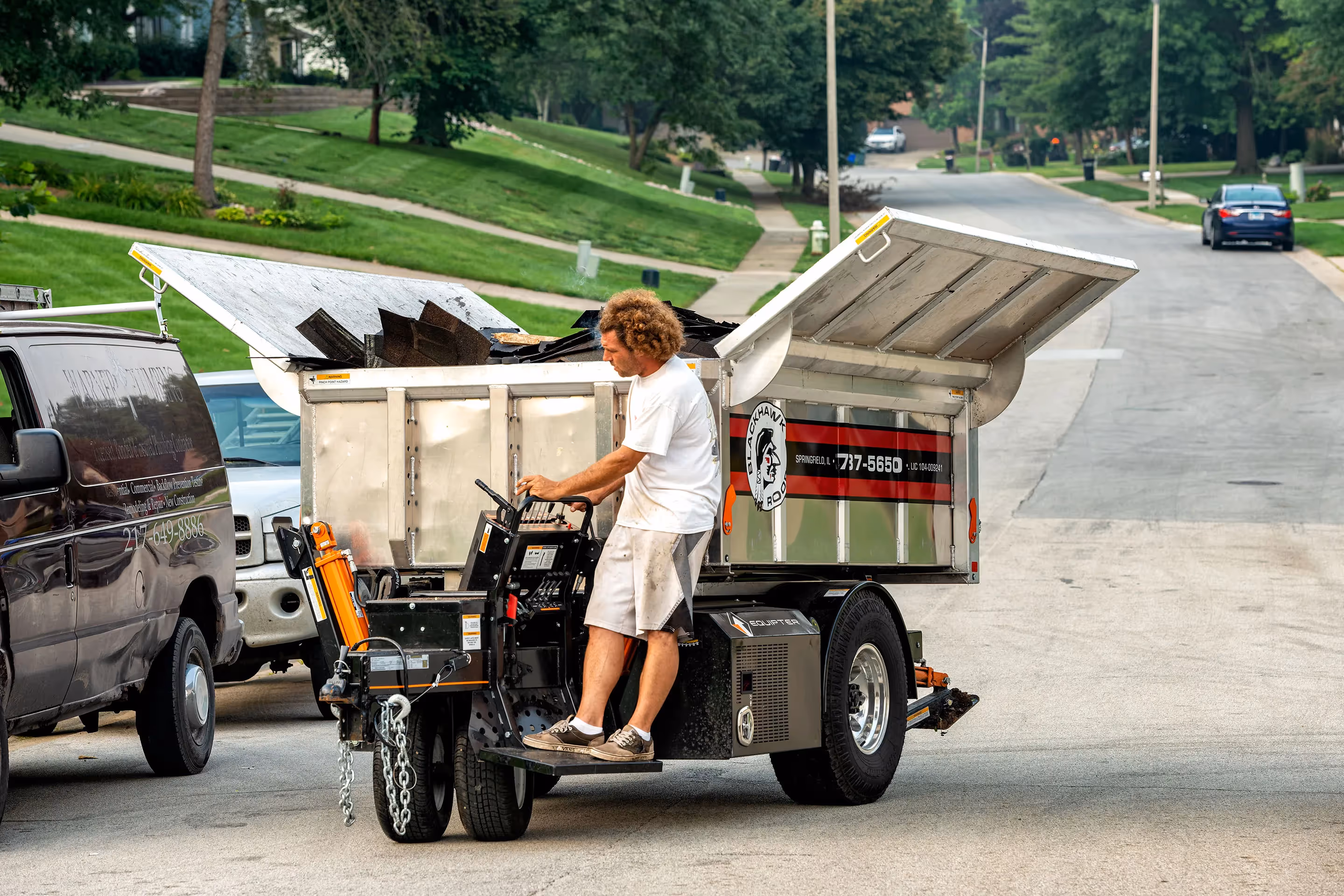

• A dump trailer was delivered to the job site the day before the project start date. The location of the dump trailer (on the owner's concrete driveway) was discussed before starting the job.
• We ordered materials for delivery at 9:00 am on the day of the tear-off.
• Tarps and plywood were set up to protect windows, doors, and landscaping.

‍Materials

• Plywood
• Roof Flashing
• Synthetic Felt
• Rollex Drip Edge
• Weather and Ice Shield
• Roof Vents
• Sewer Pipe Boots
• Architectural Shingles
• Architectural Ridge Cap

What was included in this roof replacement system?

A residential roof is a combination of roofing materials and components that form a complete roof system. Every part of this roof system has a crucial role in keeping occupants protected from the elements.

Tear-Off

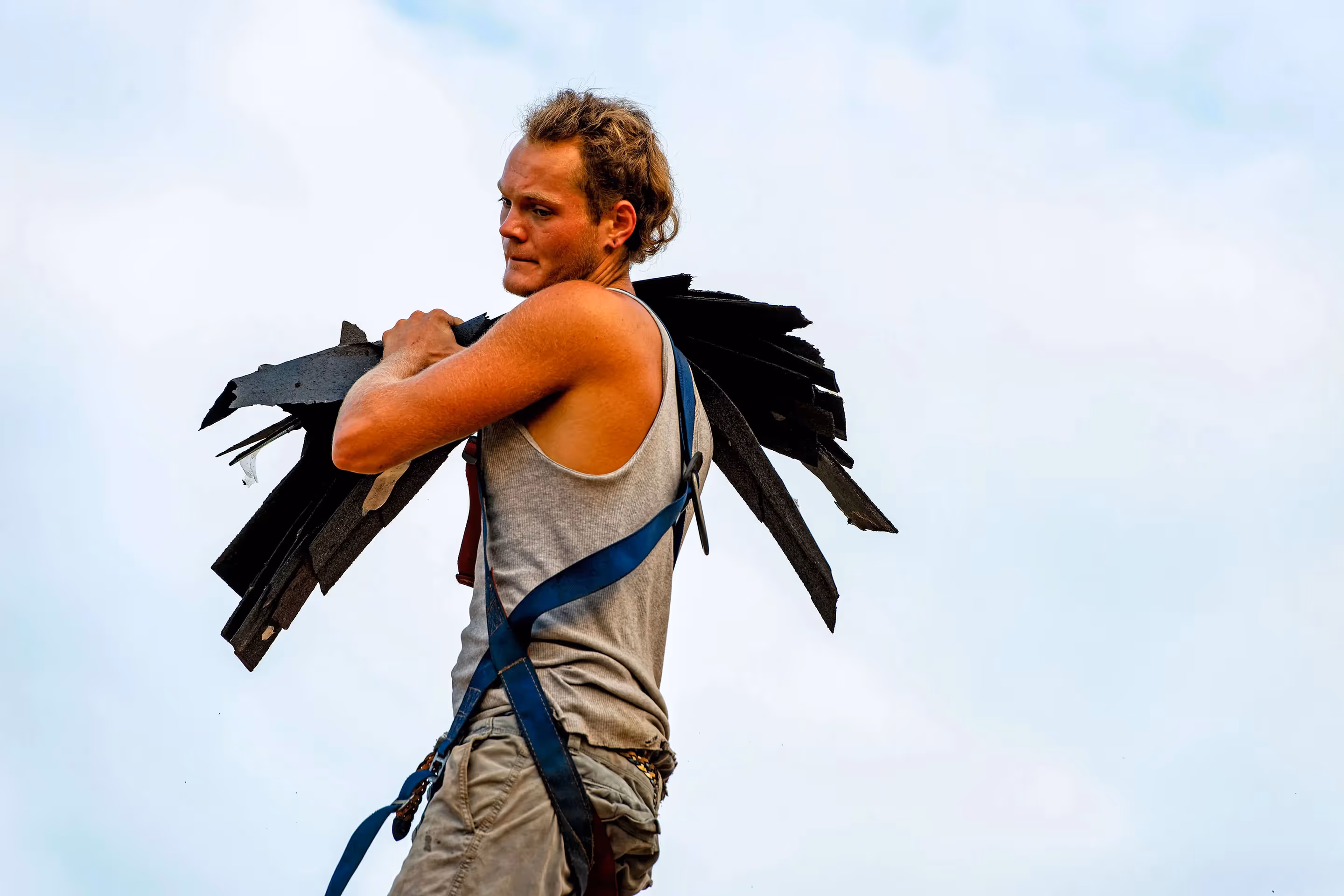

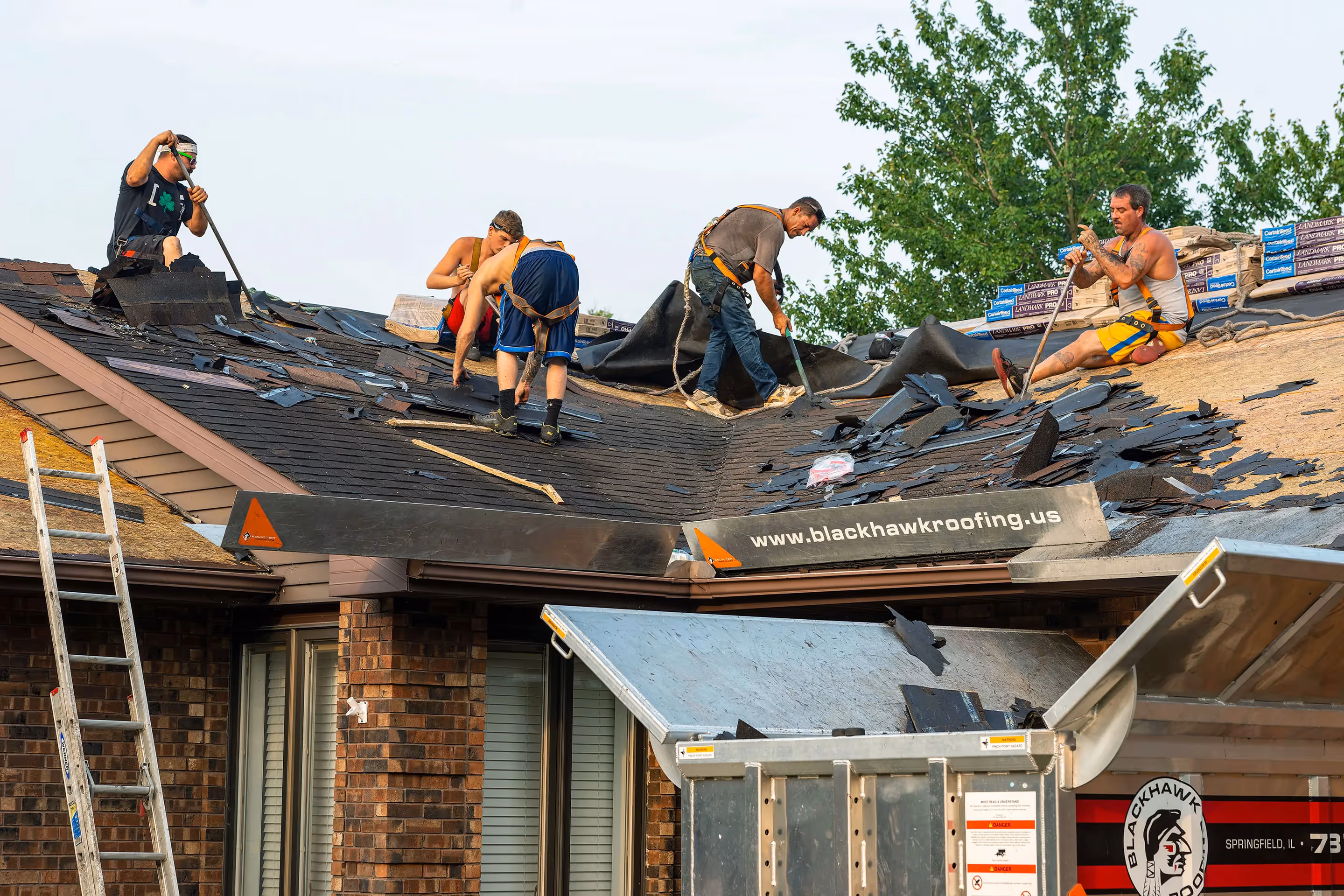

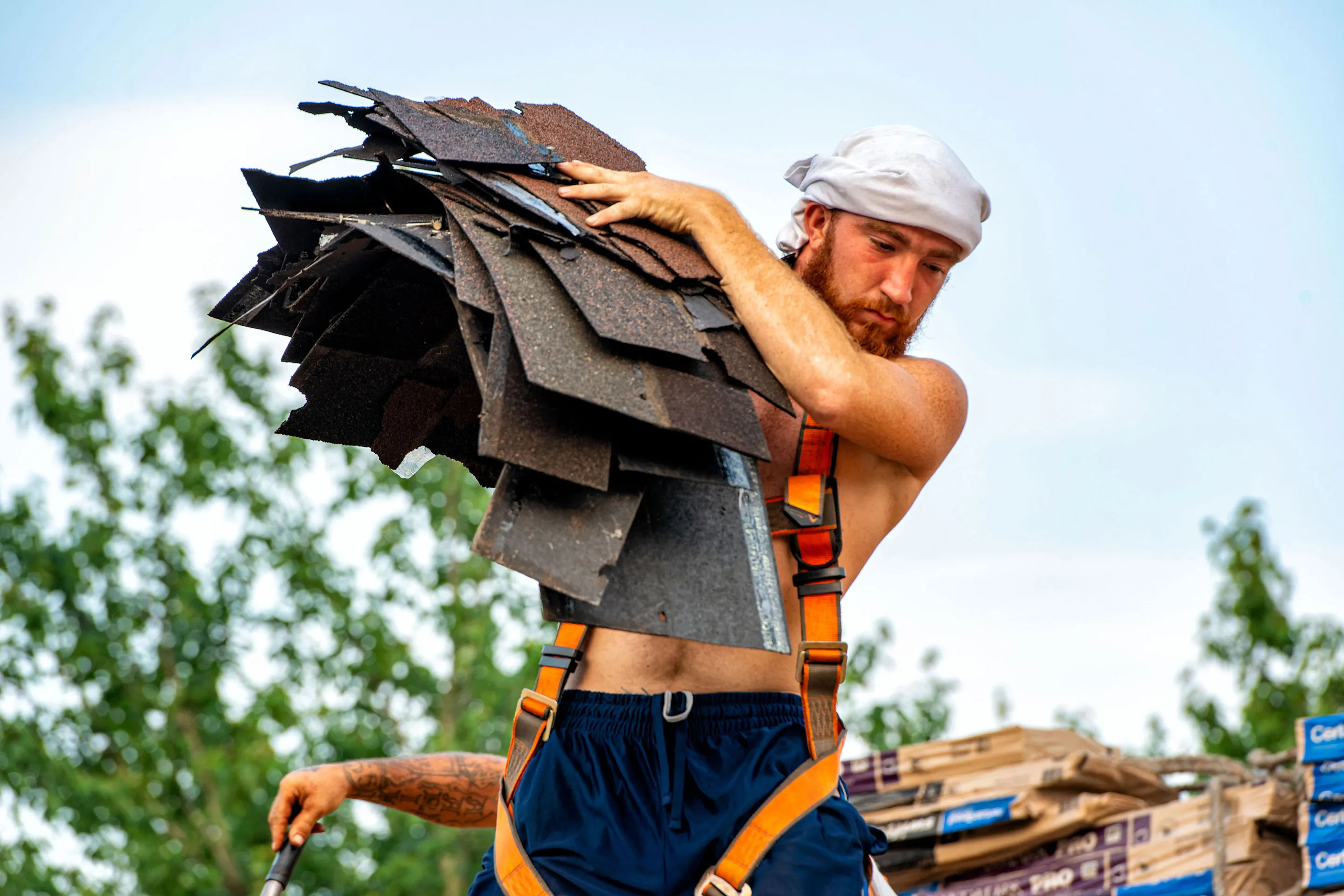

‍‍We tore off a single-layer roof (shingles, felt paper, and nails) down to the deck.‍

Roof decking

We replaced any damaged decking material with new plywood. Decking is the wooden boards or sheets of plywood that make up the wooden surface of your roof. These boards are what your shingles and other components are attached to. We won't know if decking is damaged until tear-off of the old roof. Rotting boards are replaced before the installation of new roofing components. Installation of new synthetic felt on the roof. ‍

‍Roof flashing

New flashing was installed. Roof flashing is metal placed anywhere your shingles butt up against something like a wall, chimney, or in open valleys. If your flashing isn't rusted and the integrity of the metal is still strong, then it won't need to be replaced. If it's damaged, deteriorated, or if you're upgrading from a 3-tab to a dimensional asphalt shingle, your roof flashing will be replaced.

‍Underlayment‍

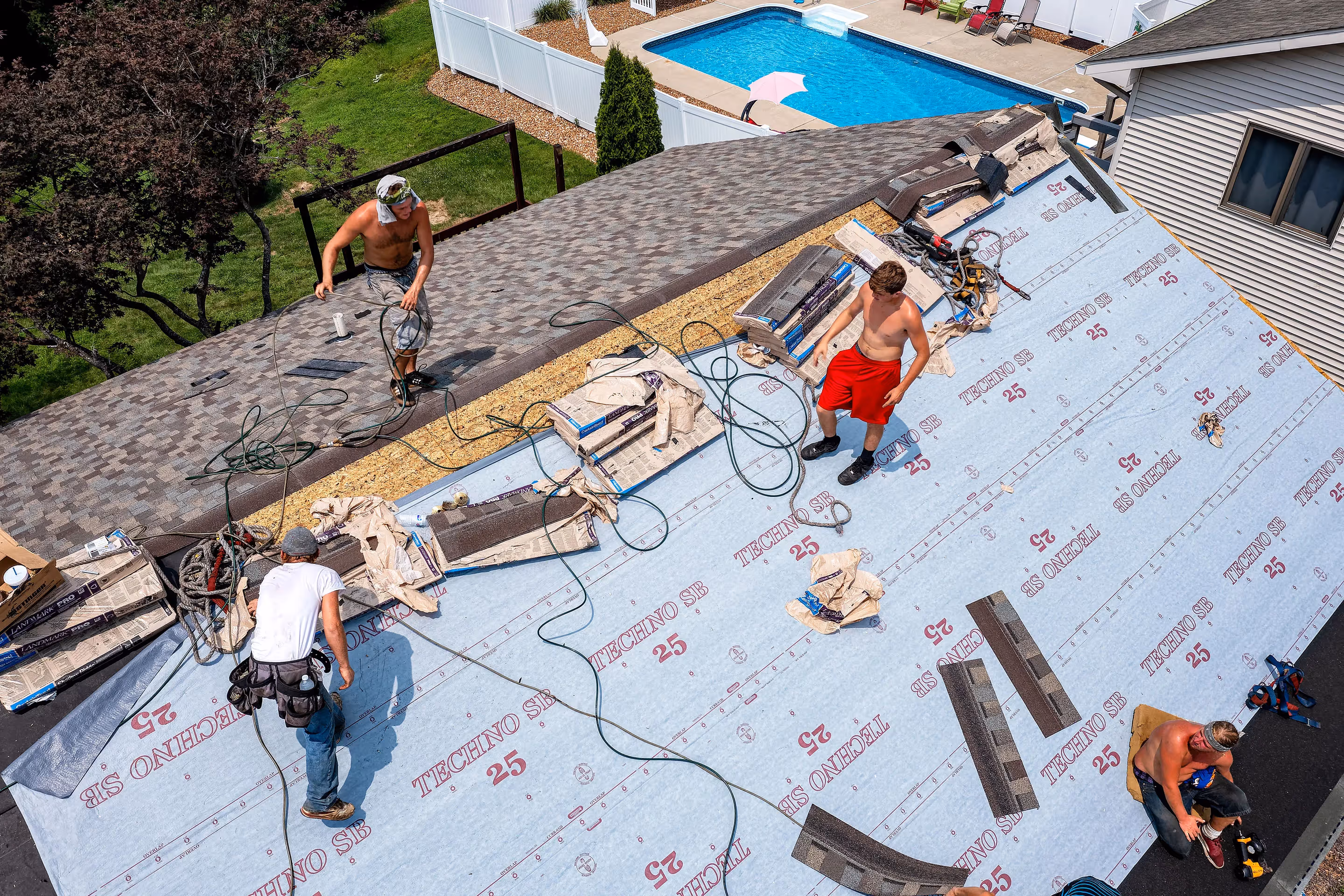

We installed new synthetic felt underlayment on the roof. Underlayment is material used over your decking to provide additional protection. It is your roof's last line of defense.‍

Drip edge‍

We installed Rollex Drip Edge along the eaves and gables of the roof. Drip edge is the metal flashing that's installed at the edges of the roof to help control the flow of water away from your fascia and other roofing components.

‍Ice and water shield‍

We installed weather and ice shield along the eaves of the roof and in valleys. Roof valleys are crucial to keeping water flowing in the right direction down your roof. They need something to protect them from the constant flow of water when it rains. Ice and water shield is the waterproof membrane protecting your roof's valleys from ice and water damage.

‍Roof vents‍

We installed new roof vents. Without proper attic ventilation, the life of your roof will be drastically reduced due to the continual expansion and contraction of trapped hot and cold air. Your roof vents stop this from happening by allowing your attic to breathe correctly.‍

Pipe boots‍

We replaced all pipe boots. Your roof pipes need to be covered, so water doesn't run down them into your home. A pipe boot is a synthetic rubber boot that goes around your roof penetrations (like sewer pipes) to prevent leaks.‍

Asphalt shingles‍

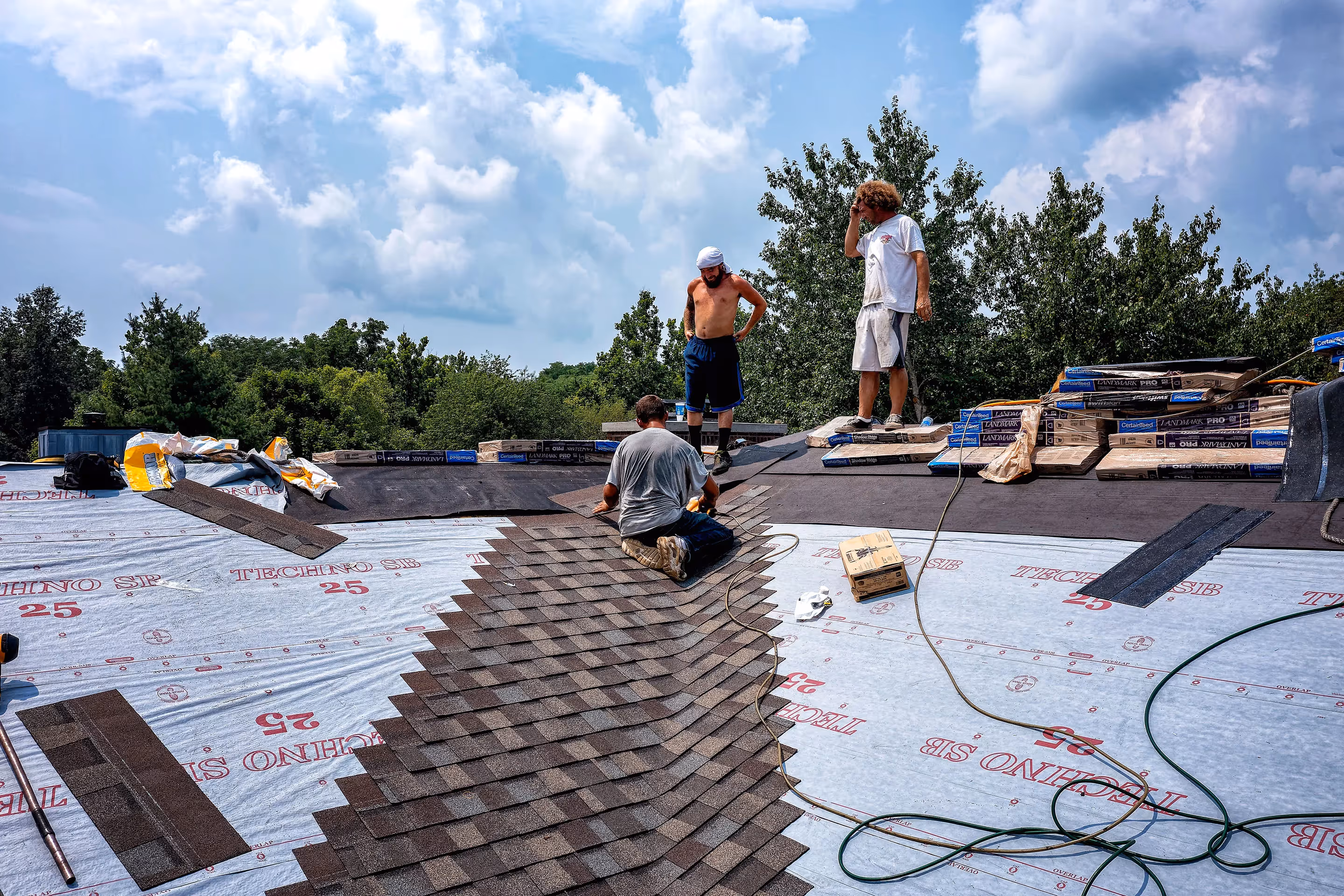

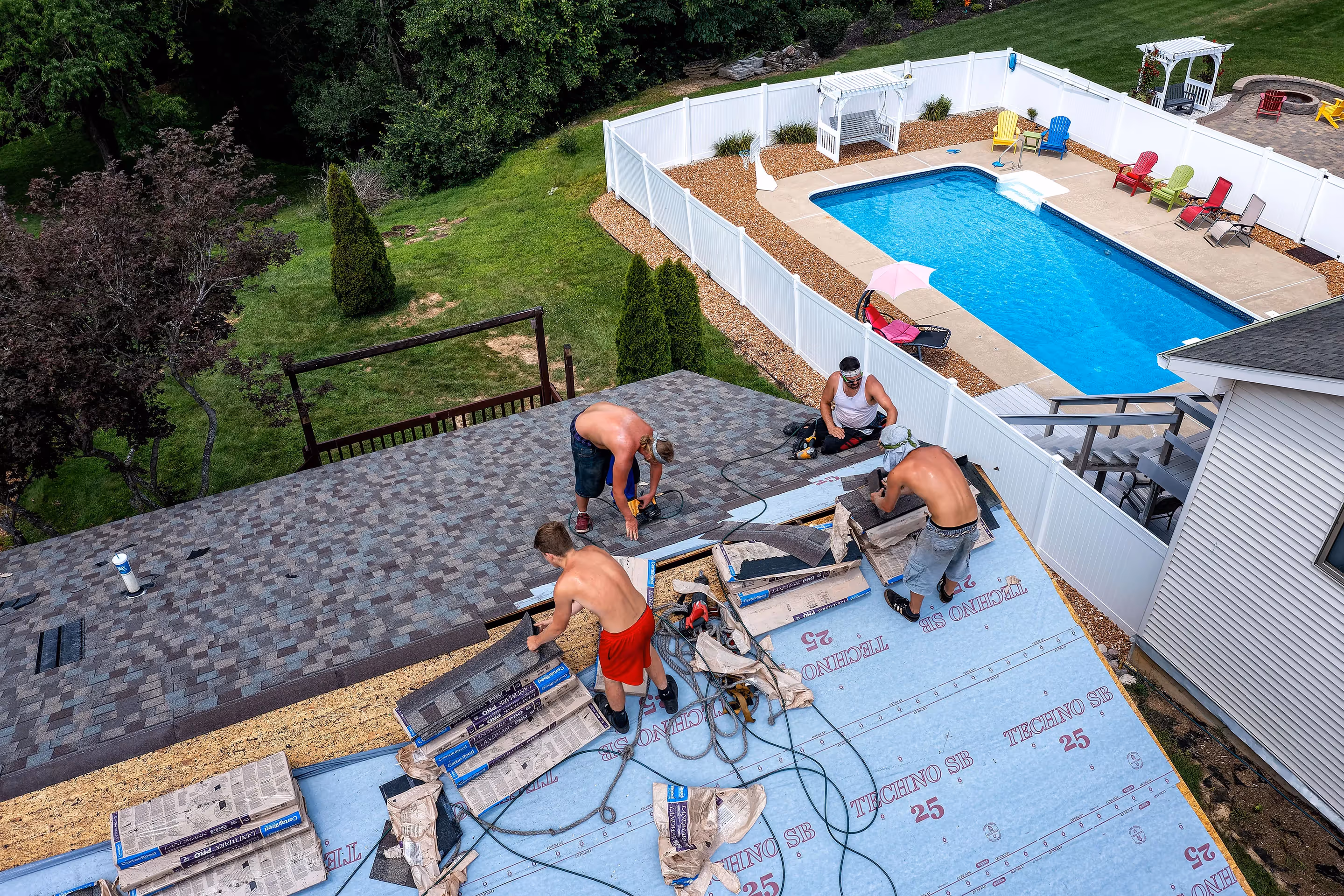

We installed CertainTeed Landmark Shingles using the manufacturer's specification of six roofing nails per shingle. ‍

Ridge cap‍

CertainTeed Landmark Ridge Cap was installed according to the manufacturer's specifications. Ridge capping is the finishing trim installed at the peak where the two slopes of a roof meet. They're thicker than regular shingles and pre-bent so that they can form to the ridges on your roof. Ridge capping will be replaced during a roof replacement. Some roofing contractors use 3-tab asphalt shingles as ridge capping to cut down on costs. We only use manufacturer-supplied ridge capping.‍

Ice and Water Shield

Ice and Water Shield was installed in all valleys, along eaves, rakes and gable ends per the manufacturer's specifications. This self-adhesive membrane helps protect against water penetration from ice dams. It is also used around chimneys, skylights and other protrusions through the roof. The membrane protects against water infiltration that can lead to wood rot and potential damage to the home.

‍Warranty‍

The Manufacturers' warranty was transferred to the owner for all materials. A five-year warranty was provided to the owner on Thames River Road for installation labor.
